Seattle Data Center Overview

As the highest density data center in Seattle, the ScaleMatrix Seattle Data Center is a tremendous combination of resources and value, as the site boasts an upgradable 50MW utility supply, and extremely aggressive utility power rates. Combined with ScaleMatrix’ DDC platform and the full umbrella of hosting, connectivity, and managed services, clients in the Aerospace, Life Science, Technology, and Cloud verticals have access to an extremely compelling set of resources and capabilities.

  • KEY STATISTICS


    • Power Density Supported Per Cabinet
      1 - 52kW Dynamic Density Control (DDC)
    • Watts Per Square Foot
      2000+
    • PUE
      1.15 – 1.2
    • Cabinet Height
      45U
    • Minimum Space Commitment
      1U
    • Minimum Power Commitment
      1kW
    • Contiguous Space Availability At Any Density
      Yes
    • Additional Set Up Cost for High Density Support
      No
    • Additional Set Up Time for High Density Support
      No
    • Cooling Set Point (Temp) and Airflow (CFM) Guarantee
      Yes
    • Real-Time & Historic Environmental Monitoring
      Yes
    • Biometric or 2FA Cabinet Level Security Included
      Yes
    • Cabinet Level Fire Suppression / Risk Mitigation
      Yes
    • Managed Power + Real Time Reporting & Reboot
      Yes
    • ScaleMatrix Hybrid Cloud Services Node
      Q1 2020
    • DDoS Mitigation Services
      Upon Request
    • Software Defined Network On-Ramp Services
      Yes (AWS, Google, Azure, IBM, Others) Megaport
    • 24/7/365 Enhanced Remote Hands Support
      Yes
    • BC/DR Space Availability
      Yes
  • CLOUD & PROFESSIONAL SERVICES


    • Cloud Hosting (On Demand, IaaS, Private Cloud)
      Q1 2020
    • Multi-Tiered Storage Services (File/Block/Object)
      Q1 2020
    • Managed Backup Solutions (BaaS)
      Yes
    • Managed Disaster Recovery Solutions (DRaaS)
      Yes
    • Professional & Managed Service Offering
      Yes
  • CONNECTIVITY & FIBER


    • Site Connectivity Availability
      Aggregate 40Gb
    • IP Carrier Availability
      Wave, Century Link, Comcast, Zayo, Click, Megaport
    • Fiber Carrier Availability (Dark, Lit)
      Wave
  • COMPLIANCE


    • SSAE-16 SOC1 Type 2
      Yes
    • SSAE-18 SOC2 Type 2
      Initial Survey Period Underway
    • SSAE-18 SOC3 Type 2
      Initial Survey Period Underway
    • PCI DSS V3.2 AoC and Merchant L4\SAQ C-VT Certification
      Initial Survey Period Underway
    • HI-TRUST
      Initial Survey Period Underway
    • HIPPA Compliance
      Yes
  • SECURITY

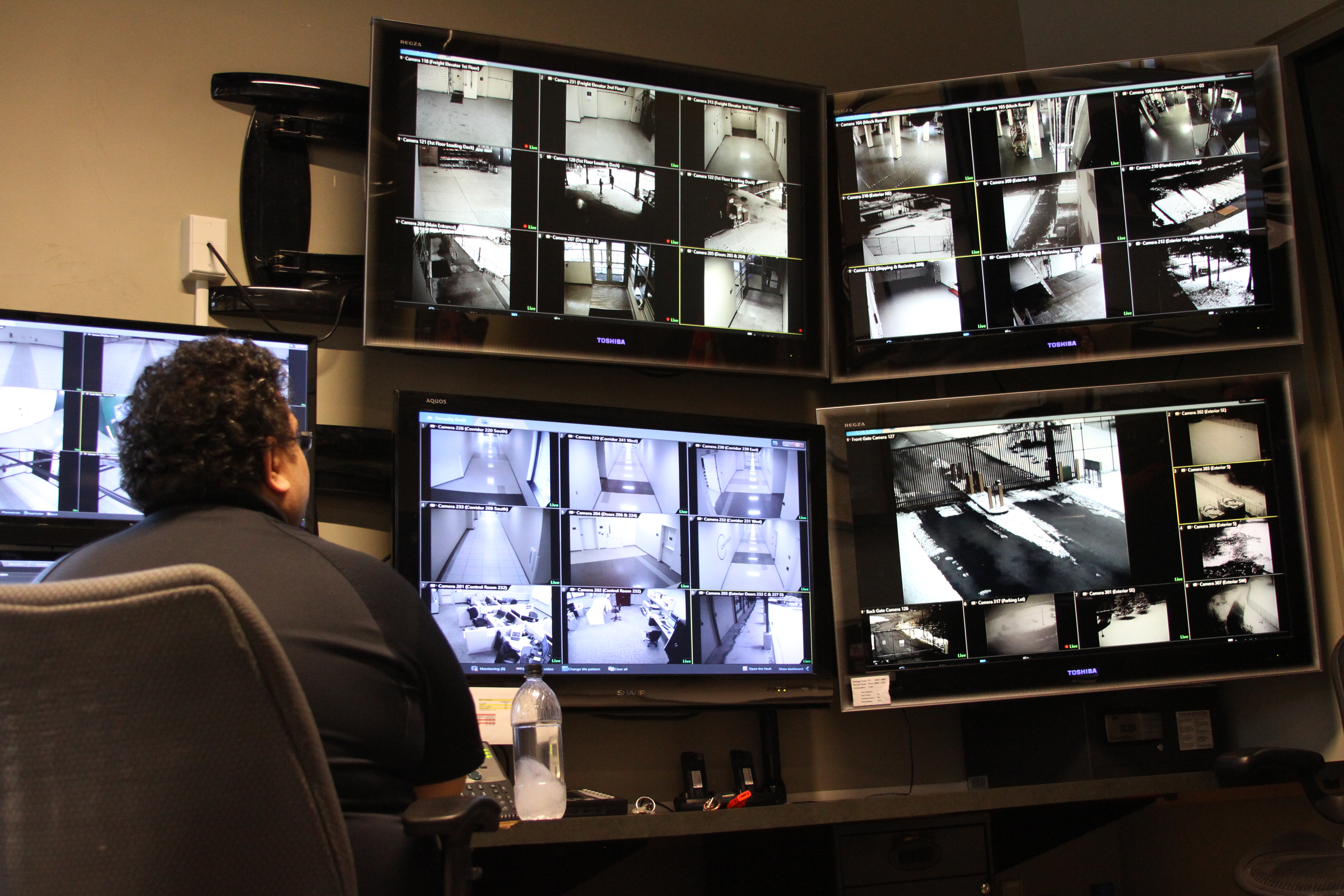

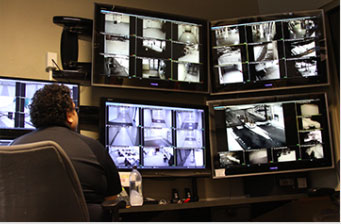

    • 24/7 Remote Monitoring
      Yes
    • Biometric Authentication
      Yes
    • CCTV
      Yes
    • Controlled Perimeter Access
      Yes
    • Dual Authentication
      Yes

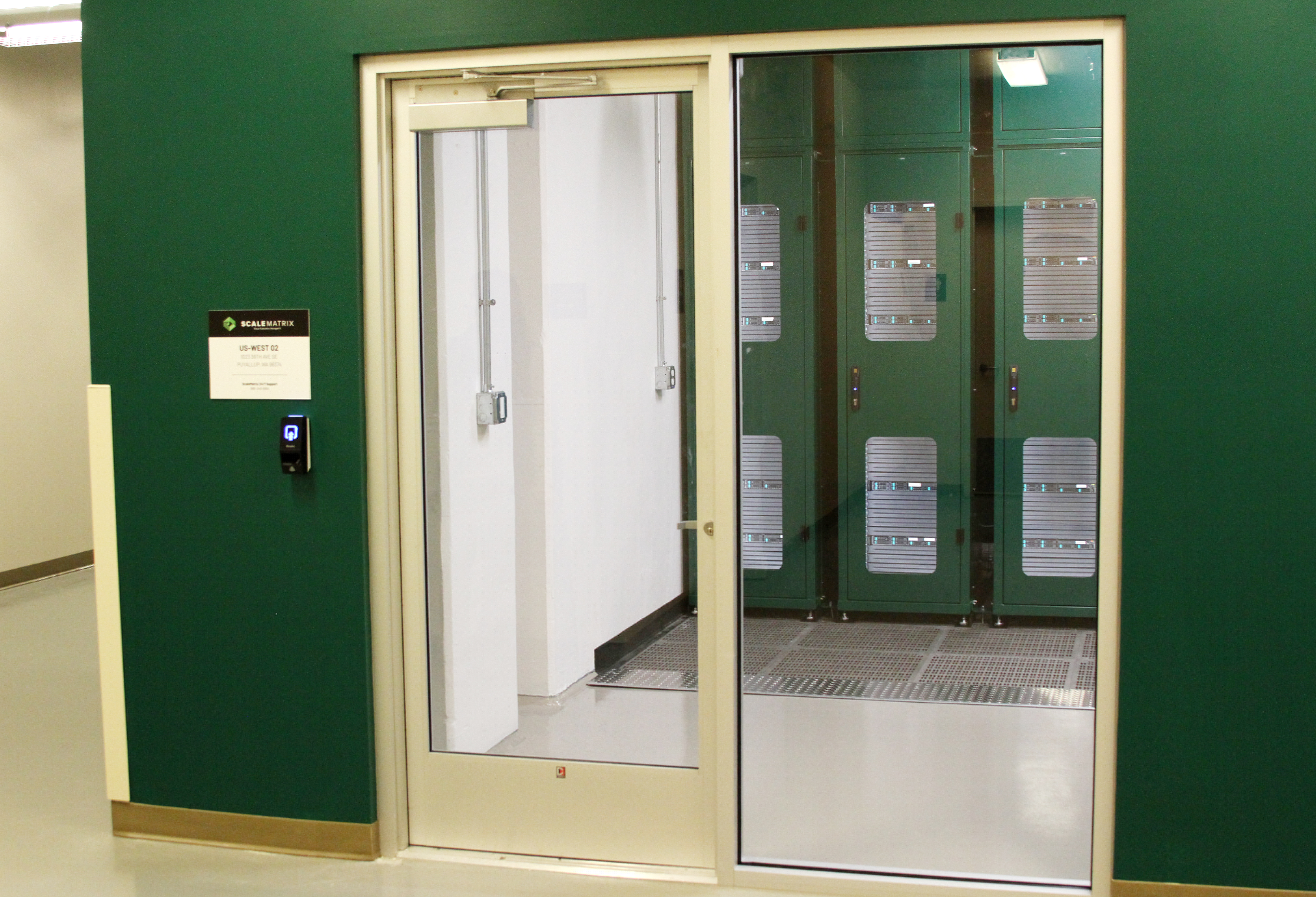

    • Mantrap
      Yes
    • On-Site Security Personnel
      Yes
  • DATA CENTER


    • Tier Rating or Equivalent
      Tier 3+
    • Total Cabinet Footprint Capacity
      3,000+
    • Gross Area Sq. Feet
      200,000+
    • Year Built
      1989
    • Year Renovated
      -
    • Outside 100 Year Floodplain
      Yes
    • Outside 500 Year Floodplain
      Yes
  • ELECTRICAL POWER


    • Aggregate Power Availability
      50MW
    • Utility Upgrade Capacity
      100MW+
    • UPS Redundancy
      N+1
    • PDU Redundancy
      N+1
    • Generator Redundancy
      2N
    • Concurrently Maintainable Electric
      Yes

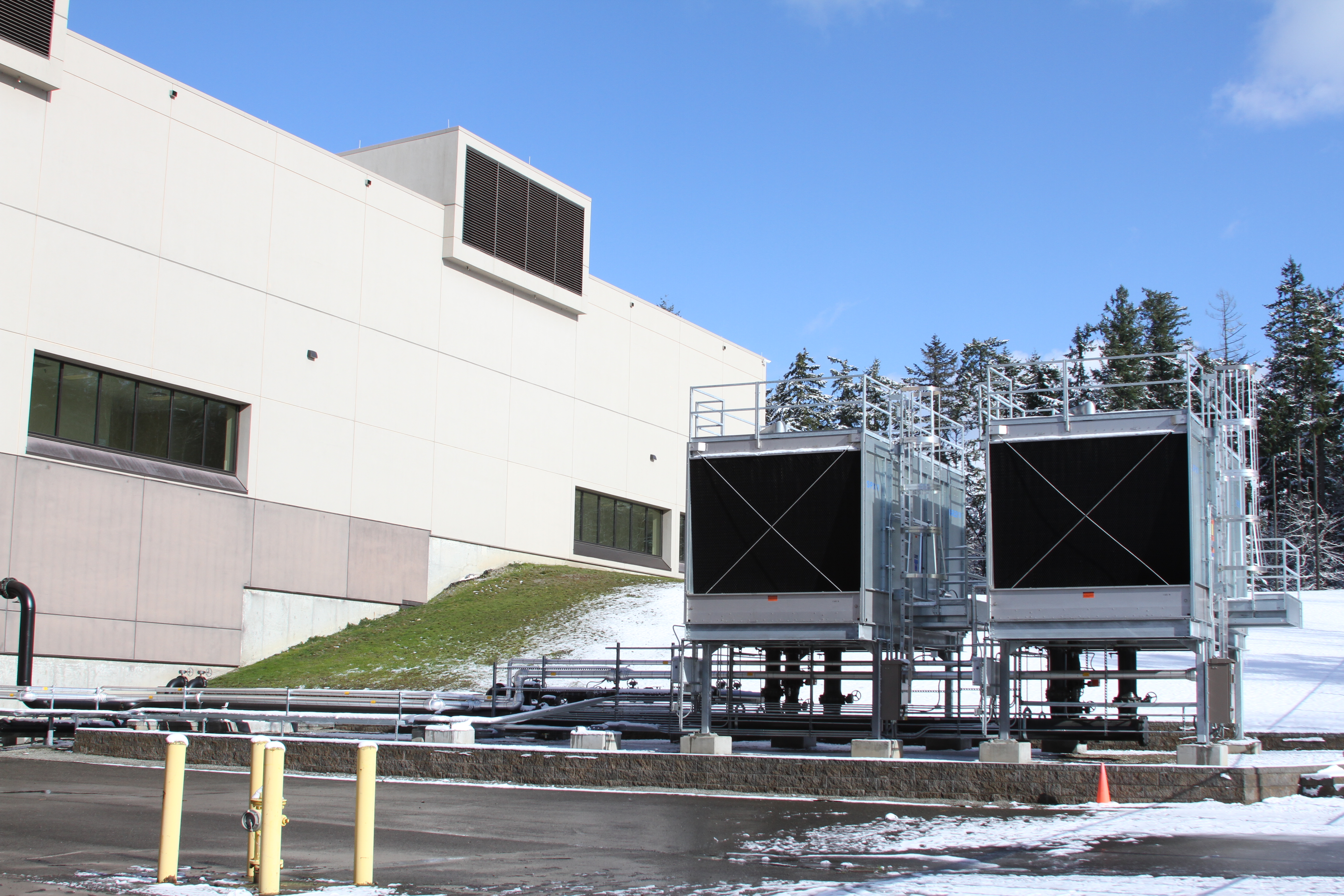

  • MECHANICAL/COOLING


    • Mechanical Tier Equivalent
      2N
    • Cooling Type
      Chilled Water
    • Cooling Method
      Liquid / Air Hybrid
    • Chiller Redundancy
      2N
    • Variable Frequency Drives
      Yes
    • Economizers
      Yes
  • GENERAL FEATURES


    • Protected Exterior (Fencing, Bollards, Standoffs)
      Yes
    • Support Operation Center (SOC)
      Yes
    • Advanced Customer Portal
      Yes
    • Available Conference & Office Space
      Yes
    •
The DDC® Difference
Dynamic Density Control®


ScaleMatrix delivers real Return-on-Investment (ROI) through the use of the revolutionary Dynamic Density Control® (DDC) platform. Clients enjoy hosting within the most secure, flexible, and future-proofed colocation sites in North America, while their investment made in IT hardware and technology goes further and last longer when colocated in these advanced Data Centers. With guaranteed environmental control and surgical temperature and airflow management, servers perform better, last longer, and provide a better return on overall investment than in any other Data Center.

Want to deploy this revolutionary data center platform within your own facility?








  • security frame

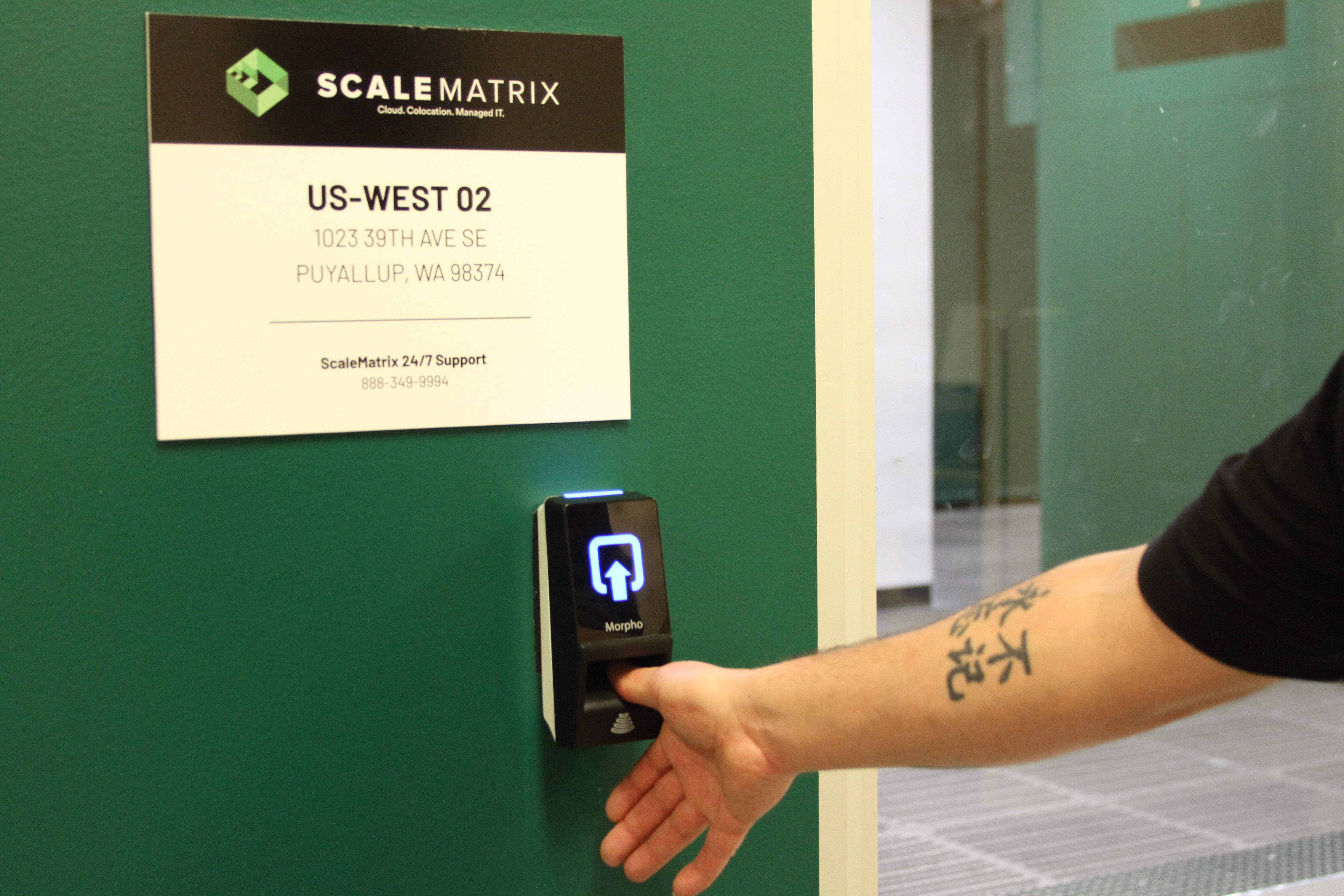

  • biometric handle

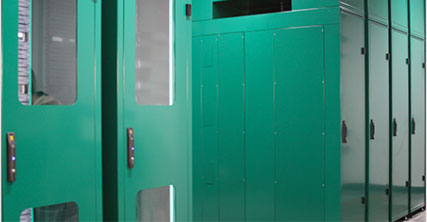

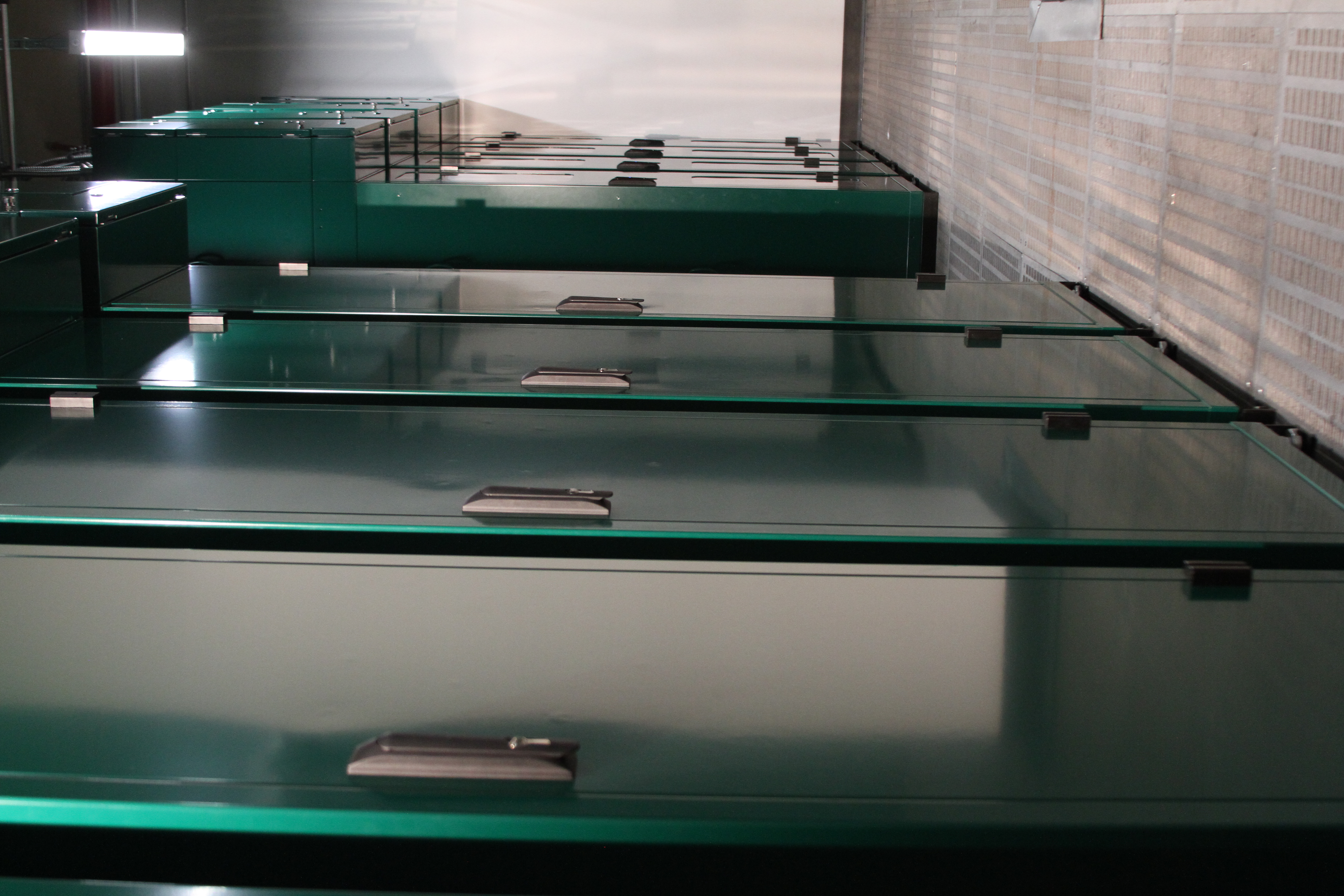

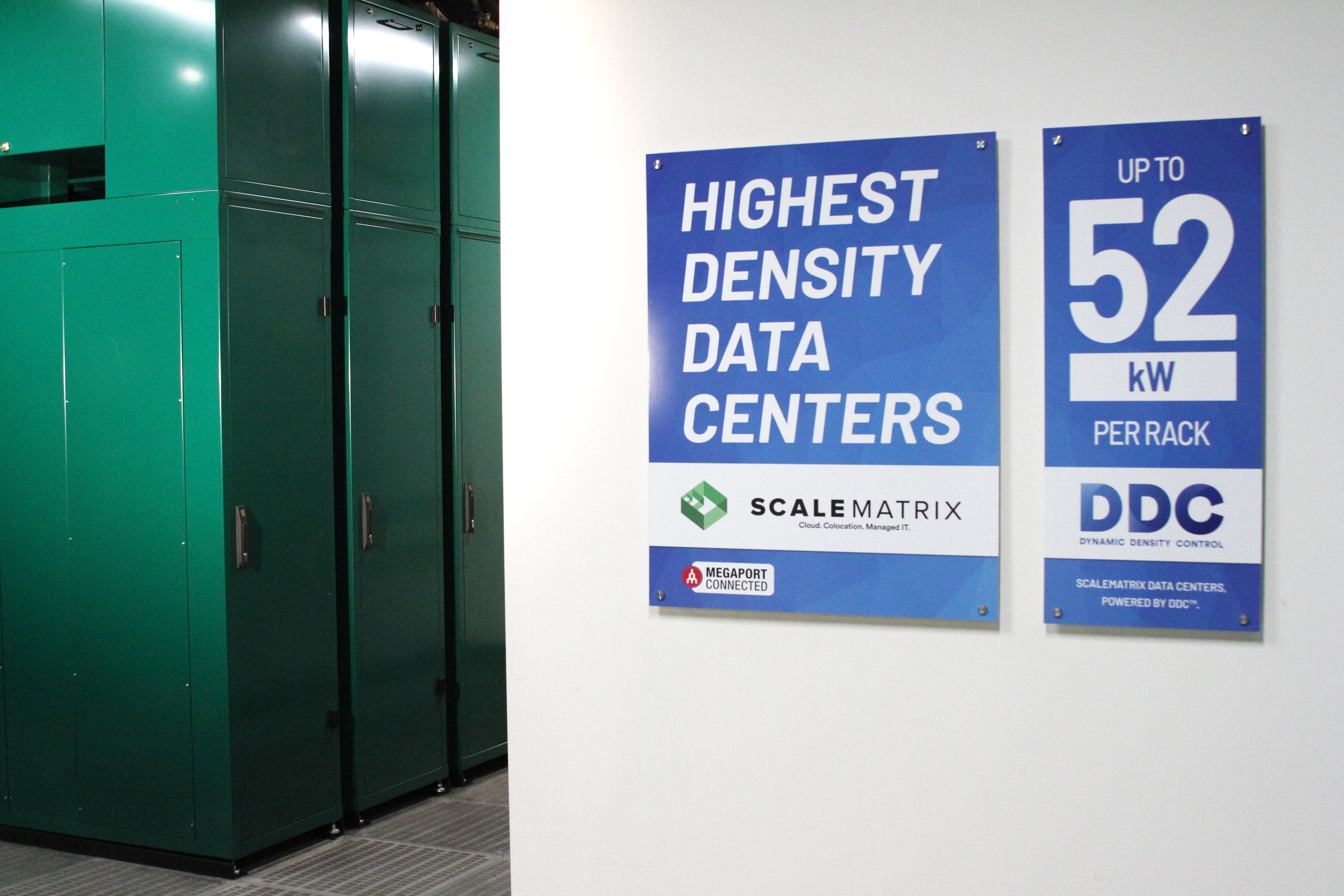

  • cabinets
  • waterloop frame
  • cabinets
  • access code
